Quick Connect Fittings 1"×3/4'' Pex Reducing Coupling
Pex Reducing Coupling Introduction
Note: JinQuan Fittings are available for higher temperatures,
pressures.
Connects Copper,PEX and CPVC... pipe in any combination.
Pex Stiffener for PEX pipe only..
Approved for use underground and behind walls without access
panels.
Certified for use in hydronic heating and potable water.
Push-Fit products are very convenient to install, just need to push
the pipe completely into the fitting, needn't use any tools, such
as spanner.
Pex Reducing Coupling Characteristic:
1) Made in brass material or carbon steel with nickel plated, and
sealed with NBR
2) Easy to connect tube by one touch, and the is applicable for
Polyurethane tubing and Nylon tubing
Pex Reducing Coupling Specification:
| Product name | Quick Connect Fittings 1"×3/4'' Pex Reducing Coupling |
| Material | Lead Free Brass body, non-toxic plastic push fit connection |
| Item No. | customized |
| Media | Water, oil, gas |
| Surface | Natural brass |
| Port Size | 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
| Testing pressure | 100% tested with 0.6MPa - 0.8MPa by air |
| Connection | Push fit x female thread |
| Valve guarantee | 2 Years |
| Samples time | 2 days - Current type
15 days - New mould |
| OEM Acceptable | Yes |

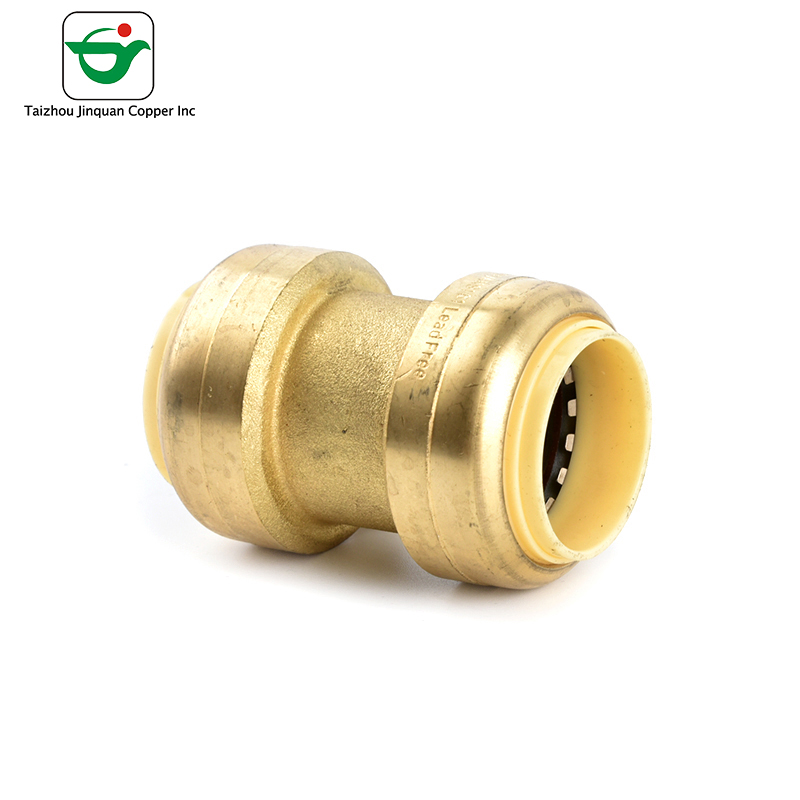

Pex Reducing Coupling Pictures
Installation
Select the correct size fitting and pipe for the job. Check that
fittings and pipe are clean, in good condition and are free from
damage and foreign objects.Cut the pipe so that the ends are
square.Ensure that there are no burrs or damage to the cut end.Once
the pipe end is cut square and clean,use a permanent marker to mark
the insert depth on the outside of the pipe.This mark is used to
ensure that the joint is assembled correctly.To assemble
correctly,the pipe needs to be pushed into the fitting untill it
meets the tube stop.Follow these three steps to insert the pipe
into the fitting.
1.lnsert the pipe through the release collar against the grab ring.
2.Push the pipe firmly with a slight twisting action until it
reaches
the tube stop.
3.To ensure that the pipe is correctly inserted, check that the
depth
mark is within 0.005 in (0.13 mm) of the end of the release collar.
Disconnection of the joint can only occur by using the PUSHLOCK
removal tool.By applying pressure to the release collar with the
re-
moval tool, the grab ring teeth are splayed.This action releases
the pipe, allowing it to be removed from the fitting.
1.Place the PUSHLOCK removal tool around the pipe with the non-
branded face against the release collar.The end with the size dis-
played on the removal tool should be positioned around the pipe and
the other end around the neck of the fitting.
2.Push the removal tool against the release collar and pull the
pipe
with a twisting action to release the pipe.
3.Check the fitting and pipe end for damage.The fitting and pipe
should be free of damage, foreign objects and marks on the outside
diameter. If the pipe is damaged or marked, then cut and use a new
section of pipe.
