90 Degree Elbows 3/4''X1/2'' Push Fit Pipe Fittings
90 Degree Elbows Introduction
Fittings certified to 200 PSI and 200°F (93°C).
Fits copper tubing, and CTS CPVC and PEX and connects all three
types in any combination.
Integral tube liner for PEX installations, so
no loose components,
ensures secure, reliable connection.
Design certified and agency listed.
Compact, robust LEAD FREE brass body. Foundation of a strong,
corrosion resistant, durable fitting.
Design certified to ANSI/NSF-61 and ASSE 1061 product standard for
use in potable water and hydronic heating water distribution.
Approved to be used underground and behind walls without access
panels.
Designed for hydronic heating as well as potable water
distribution.
90 Degree Elbows Specification:
| Specification | Parameter |
| Name | 90 Degree Elbows 3/4''X1/2'' Push Fit Pipe Fittings |
| Applicable medium | Compressed Air, Vacuum |
| Pressure range | 0~1.0 MPa |
| Proof pressure | 1.5 MPa |
| Negative range | -100kpa (10Torr) |
| Temperature range | 5°C~60°C |
| Applicable tube | PU hose, Nylon hose, PE hose |

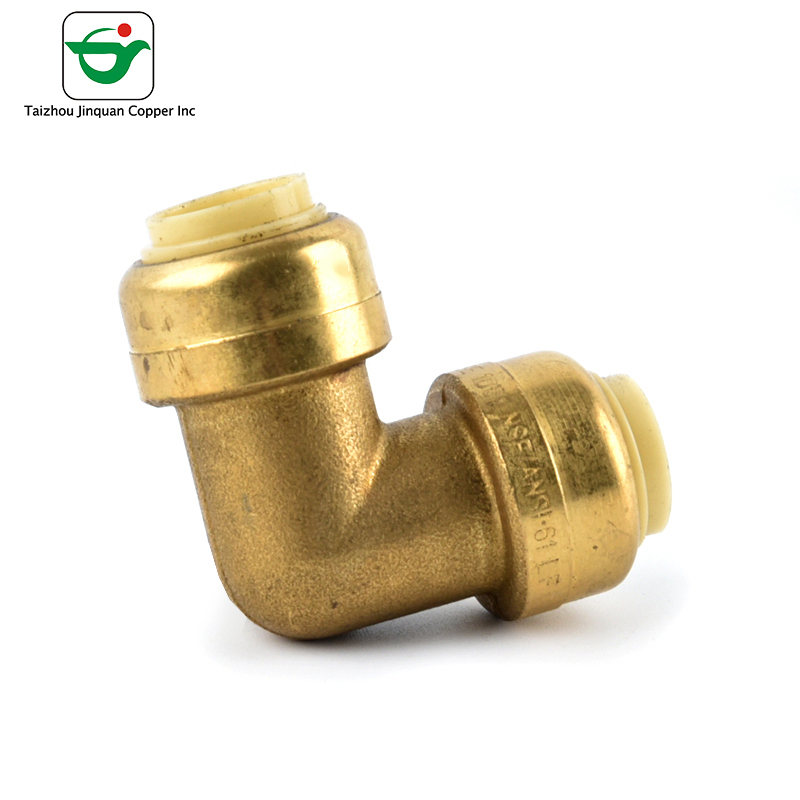

90 Degree Elbows Pictures
Installation
Select the correct size fitting and pipe for the job. Check that
fittings and pipe are clean, in good condition and are free from
damage and foreign objects.Cut the pipe so that the ends are
square.Ensure that there are no burrs or damage to the cut end.Once
the pipe end is cut square and clean,use a permanent marker to mark
the insert depth on the outside of the pipe.This mark is used to
ensure that the joint is assembled correctly.To assemble
correctly,the pipe needs to be pushed into the fitting untill it
meets the tube stop.Follow these three steps to insert the pipe
into the fitting.
1.lnsert the pipe through the release collar against the grab ring.
2.Push the pipe firmly with a slight twisting action until it
reaches
the tube stop.
3.To ensure that the pipe is correctly inserted, check that the
depth
mark is within 0.005 in (0.13 mm) of the end of the release collar.
Disconnection of the joint can only occur by using the PUSHLOCK
removal tool.By applying pressure to the release collar with the
re-
moval tool, the grab ring teeth are splayed.This action releases
the pipe, allowing it to be removed from the fitting.
1.Place the PUSHLOCK removal tool around the pipe with the non-
branded face against the release collar.The end with the size dis-
played on the removal tool should be positioned around the pipe and
the other end around the neck of the fitting.
2.Push the removal tool against the release collar and pull the
pipe
with a twisting action to release the pipe.
3.Check the fitting and pipe end for damage.The fitting and pipe
should be free of damage, foreign objects and marks on the outside
diameter. If the pipe is damaged or marked, then cut and use a new
section of pipe.
