Chrome Plated 1/2''X1/2'' Pex Pipe Ball Valve
Pex Pipe Ball Valve Description
Lead Free ball valve is made of brass and has a lever handle with
Compression connections on both ends for quick DIY installation.
This multi-purpose manual lever ball valve has excellent corrosion
resistance and is fit for many applications. The valve is fitted
with Polytetrafluoroethylene (PTFE) reinforced seats and seals
reduce the risk of valve leakage. Low Operation Torque Heavy duty
handles with blue vinyl insulation.Standard Port
600PSI Non-Shock WOG
Temperature range:-28℃~148℃
Packing gland on stem is reliable seal mode
Heavy duty rust resistant handles with vinyl grip
Threaded ends comply with ANSI BI.20.1
Materials comply with AB1953 provisions
Pex Pipe Ball Valve Feature
Fine production process
Casting, sand cleaning machining expoxy coating and assemble,
pressure testing warehousing all processes ensure good
Two pressure tests
Pex Pipe Ball Valve Parameters
| Name | PEX Ball Valve w/Drain |
| Body | CW614N, CuZn39Pb3, CW617N, CuZn40Pb2, DZR,as per request |
| Norminal Diameter | DN15-DN50, can be customized |
| Norminal Pressure | 600PSI |
| Working Medium | Water, Non-causticity liquid, Saturated steam |
| Working Temperature | -28℃~148℃ |
| Thread | ISO228/1, BSP, NPT, etc |
Pex Pipe Ball Valve Advantage
- Fast Material Supply. Have own copper bar Factory of Group.
- Every valve put through a six-step QC process before delivery.
- Material Control, Machining Quality Control, In-coming Material
Inspection, Assembly Line Quality Control, Leakage Testing, Final
Inspection Before Delivery.
- 100% Leakage Test.
- Complete R&D facilities and Excellent team.
- Annual R&D projects reach the number of 100.
- Have rich experience and strong ability to develop new product

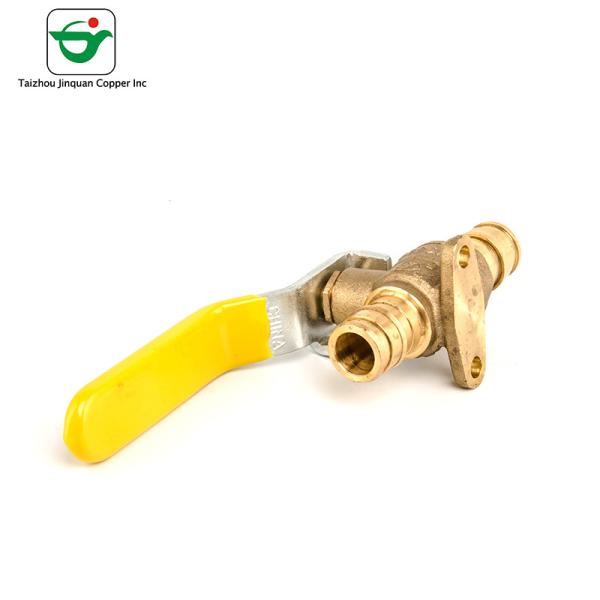

Pex Pipe Ball Valve Pictures
Details
FAQ
Q: Can l get samples from your factory?
A:Samples available,We usually provide existing sample for free.But
Express Fee is needed.
lf you have UPS/DHL...account,We can use your account.For existing
samples, it takes 1-2days.
lf you need your own designs, it will takes 7-10 days,Cause we need
make new MOULD.
Q: What is your MOQ? Can l order small amount ?
A:Usually our MOQ is 1,000pcs.To take a good start, We accept any
quantity for your trial order.
Pls feel free to tell us which Item,Size,Quantity, So that we can
make Pl for you,
Wish your business boom and place larger orders in the future.
: What is your payment term?
A:Normally,T/T 30% down payment,balance to be paid before shipment.
or L/C.
After cooperate 2-3 times,We will know each other,Will cosider your
ideal payment term then.
